Borehole Diameter

90-115 mm

4"-5"

Pipe Sizes

64/76x3000 mm

3"/3"x9'10"

Hammer Size

3''/4''

3''/4''

Max Rotation Speed

120 rpm

120 rpm

Max Rotation Torque

1900 N·m

1401 lbf/ft

Feeding Stroke

3000 mm

9'10"

Feed Extension

900 mm

2'11"

Feed Speed

0.59 m/s

2 ft/s

Feed Force

15 kN

3372 lbf

Pull Up Force

25 kN

5620 lbf

Length of Feed Beam

4500 mm

14'9"

Max Walking Speed

2 km/h

1 mph

Track Oscillation

290 °

290 °

Grad Ability

30 °

30 °

Rated Power

59 kW

79 hp

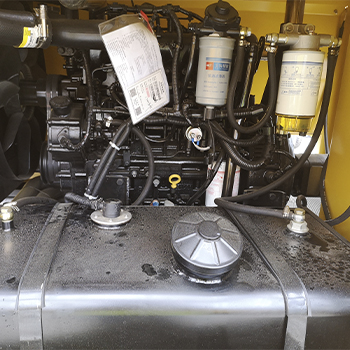

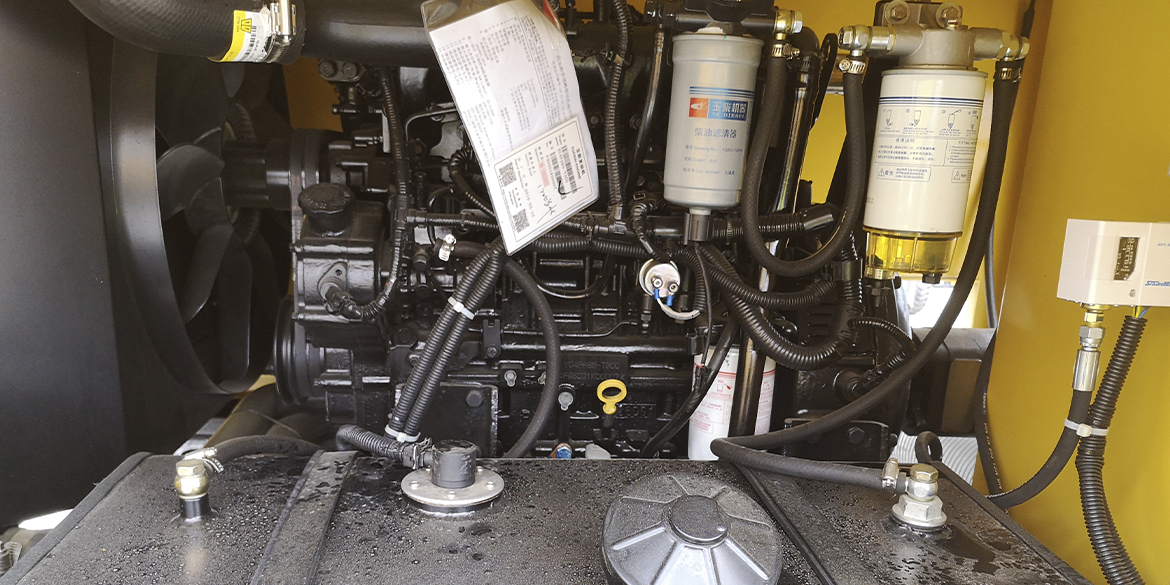

Engine

YuChai

YuChai

Length

5000 mm

16'5"

Width

2300 mm

7'7"

Height

2050 mm

6'9"

Weight

4900 kg

10803 lb
