Operating weight

12670 kg

27933 lb

Standard bucket

2.1 m³

2.7 yd³

Maximum gross power

112 kW (152 hp) @ 2200 rpm

112 kW (152 hp) @ 2200 rpm

Maximum net power

106.4 kW (145 hp) @ 2200 rpm

106.4 kW (145 hp) @ 2200 rpm

Rated load

4000 kg

8818 lb

Total cycle time

10.1 s

10.1 s

Tipping load-full turn

8420 kg

18563 lb

Bucket breakout force

116 kN

26078 lbf

Dump clearance, full height discharge

2750 mm

9'

Dump reach, full height discharge

1088 mm

3'7"

Model

Perkins 1204F -E44TTAN

Perkins 1204F -E44TTAN

Emissions

EPA Tier 4F / EU Stage IV

EPA Tier 4F / EU Stage IV

Cooling system

Charge air cooling

Charge air cooling

Length with bucket down

7650 mm

25'1"

Width over tires

2470 mm

8'1"

Cab height

3310 mm

10'10"

Turning radius, outside of tire

5430 mm

17'10"

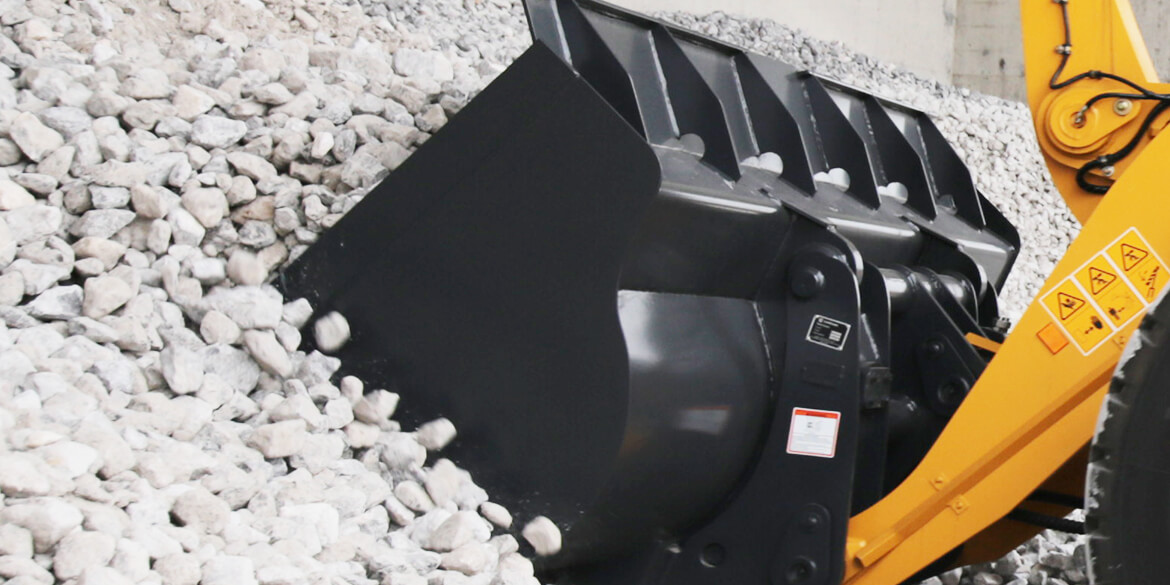

Bucket capacity

2.1-4.0 m³

2.7-5.2 yd³

General Purpose

2.1 m³

2.7 yd³

Light material

3.0, 4.0 m³

3.0, 4.0 yd³

Heavy-rock

1.5 m³

2 yd³
