Operating weight

5470 kg

12059 lb

Standard bucket

0.8 m³

1 yd³

Gross power

55 kW (75 hp) @ 2400 rpm

55 kW (75 hp) @ 2400 rpm

Net power

50 kW (68 hp) @ 2400 rpm

50 kW (68 hp) @ 2400 rpm

Rated load

1000 kg

2205 lb

Total cycle time

8.2 s

8.2 s

Tipping load-full turn

3300 kg

7275 lb

Bucket breakout force

60 kN

13489 lbf

Dump clearance, full height discharge

2420 mm

7'11"

Dump reach, full height discharge

790 mm

2'7"

Model

Luochai YT4A2 – 24

Luochai YT4A2 – 24

Emissions

EPA Tier 2 / EU Stage II

EPA Tier 2 / EU Stage II

Cooling system

Charge air cooling

Charge air cooling

Length with bucket down

5460 mm

17'11"

Width over tires

1940 mm

6'4"

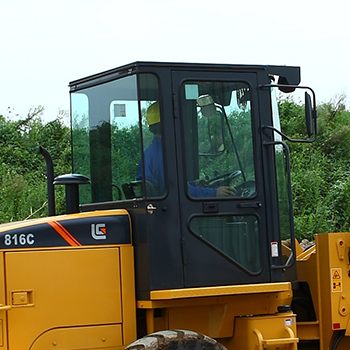

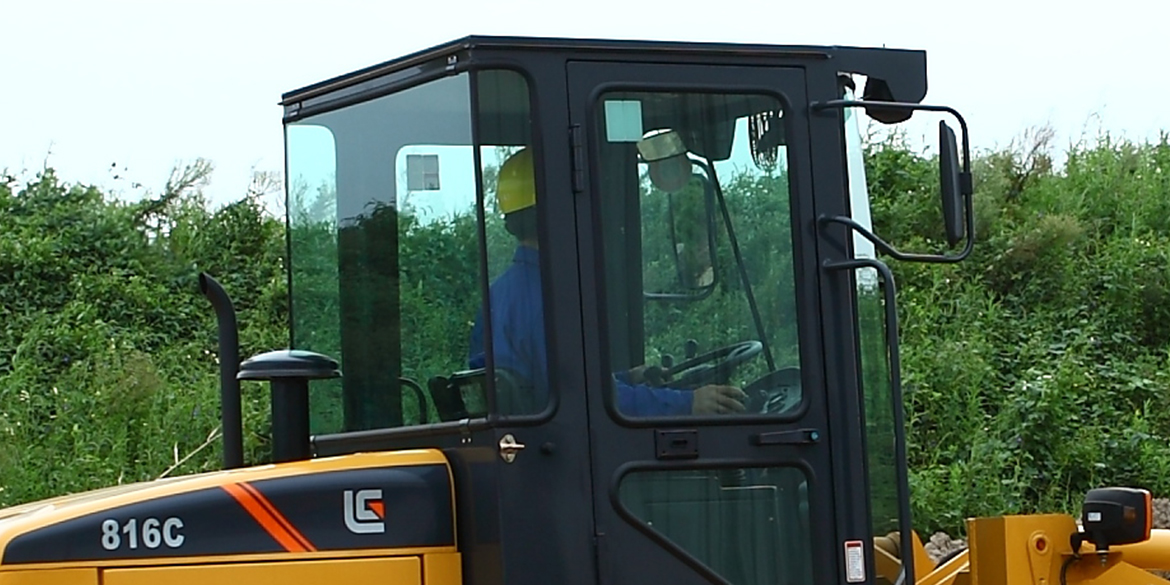

Cab height

2865 mm

9'5"

Turning radius, outside of tire

4185 mm

13'9"

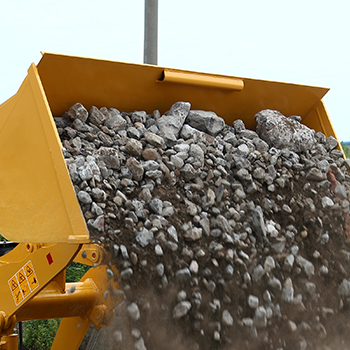

Bucket capacity

0.8-1.2 m³

1-1.6 yd³

General Purpose

0.8 m³

1 yd³

Light material

0.8-1.5 m³

1-2 yd³
