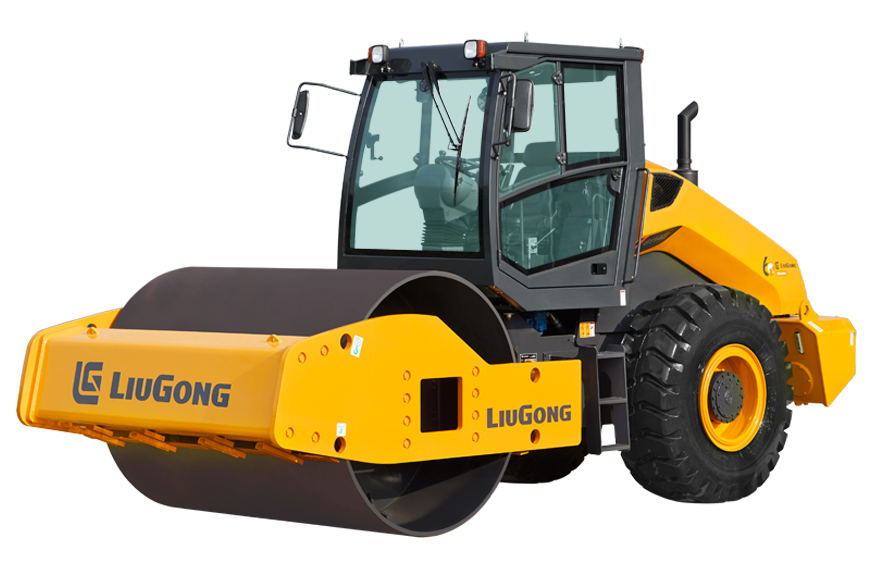

6114E

Product-Features

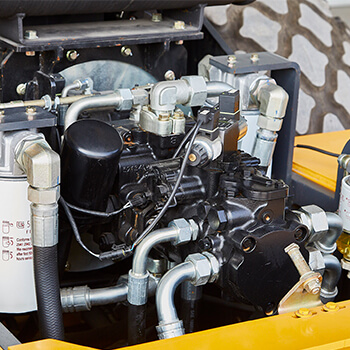

Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.

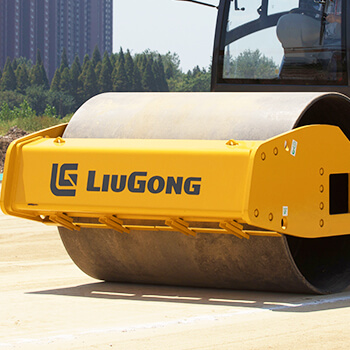

With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.
Patented cooling technology inside the drum keeps temperatures balanced at around 90° centigrade, 20° lower than the industry average. This stable temperature regulation helps prolong component life and reduces maintenance.

Operating weight:14,000 kg30864.72 lbs
Rated power:103 kW138.13 hp
Vibration frequency:30 Hz30 Hz

Rollers6114E

Product Features

Specifications

6114E
6114E

Compare product

Operating Mass

14000 kg

Mass On Vibrating Drum

7000 kg

Mass On Drive Axle

7000 kg

Front Drum Static Linear Load

322 N/cm

Model

Shangchai SC4H140.2G2

Emission Regulation

Stage II

Rated Power

103 kW (140 hp) @ 2000 rpm

Vibration Frequency

30 Hz

Nominal Amplitude

2.0/1.2 mm

Centrifugal Force

280/170 kN

Drum Diameter

1555 mm

1st Maximum Speed, fwd

2.7 km/h

2nd Maximum Speed, fwd

5.2 km/h

3rd Maximum Speed, fwd

11 km/h

Theoretical Gradeability

30%

Min. GroundClearance

450 mm

Wheelbase

2950 mm

Min. Outside Turning Radius

6500 mm

Overall Length

6000 mm

Overall Width

2280 mm

Overall Height

3050 mm
