SD36A

Product-Features
Applicable-Industry

A new generation of dedicated chassis: 299kW engine ,meeting Euro III emissions standard ,high power and high durability; Heavy weight, low center of gravity, and greatly improved stability during working period; providing stable and reliable power for the whole machine.
Rotary head : Multi rotary speed control system ensure higher drilling efficiency; long-guided three-sided wear-resistant structure design;High vertical drilling accuracy; Double buffer system improving protection ability.
The main winch adopts a long reel design and fast confluence technology, with a maximum speed of 70m / min; high and low speed crowd system , and one-key quick function of the engine, which effectively improve the construction efficiency and extend the life of the wire rope.
Energy saving and environmental protection: Multi-pump in series and parallel system and specially designed on main valve can reasonably perform power distribution, reduce energy consumption, and increase the output power of the main valve.
Superimposed counterweight can flexibly increase or decrease weight according to the configuration and l working conditions, Effectively improve the drilling efficiency in super-hard and ultra-complex;, High quality of hole formation and long kelly bar working Life.
The integrated hydraulic system and electrical system make the operation more flexible and reasonable, and the power output changes reasonably, which effectively improves the efficiency of energy and achieves energy saving and consumption reduction.
Appearance design: Super streamlined design. The cover and counterweight are cast with integrated moulds. The wear-resistant and easy-to-clean glazed paint integrates the sense of technology and power of rotary drilling rigs.

Rotary Torque360 kN·m265522 lbf/ft
Depth70m2755.9 inch

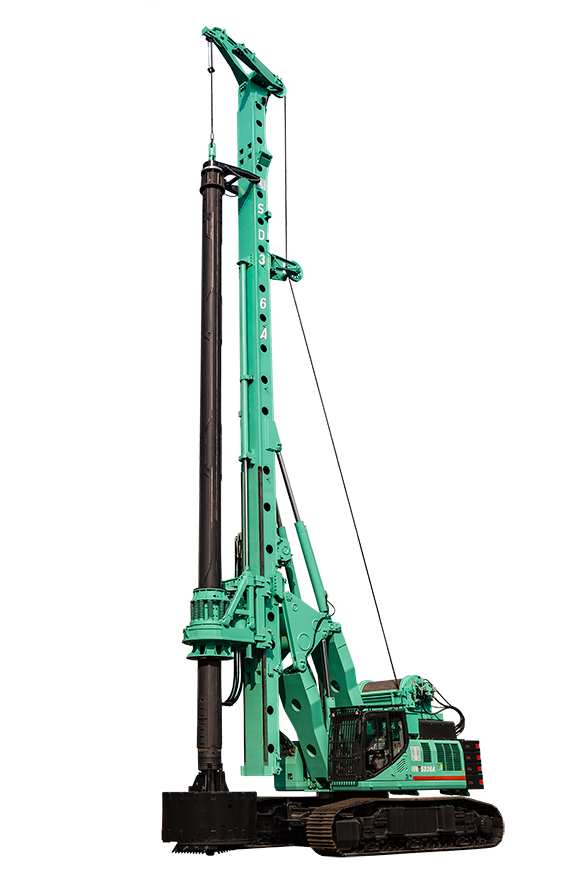

Multi-Functional Drilling Rig SD36A

Product Features

Specifications

36A
SD36A

Compare product

Working height

25840 mm

Weight ( without drilling tools)

92000 kg

Upper chassis

JS80

Engine

QSM11-Tier3

Rated Power

299/1900

Hydraulic system flow

2×380+164 L/min

Hydraulic system pressure

33 MPa

Fuel tank capacity

650 L

Hydraulic tank capacity

420 L

Extendable under carriage

JT90

Shoes width

800 mm

Chassis length

6020 mm

Undercarriage width

3450-4600 mm

Traction force

650 kN

Travelling speed

1.5 km/h

Rotary torque

360 kN·m

Rotation speed

6-24 r/min

Single line pull of Main winch

360 kN

Rope dia of Main winch

36 mm

Max lifting speed of Main winch

60 m/min

Single line pull of Auxiliary winch

75 kN

Rope Dia of Auxiliary winch

18 mm

Maximum lifting speed of Auxiliary winch

45 m/min

Stroke

6000 mm

Crowd force

300 kN

Pulling force

300 kN
