Operating weight

14500 kg

31967 lb

Drawbar pull

79 kN

17760 lbf

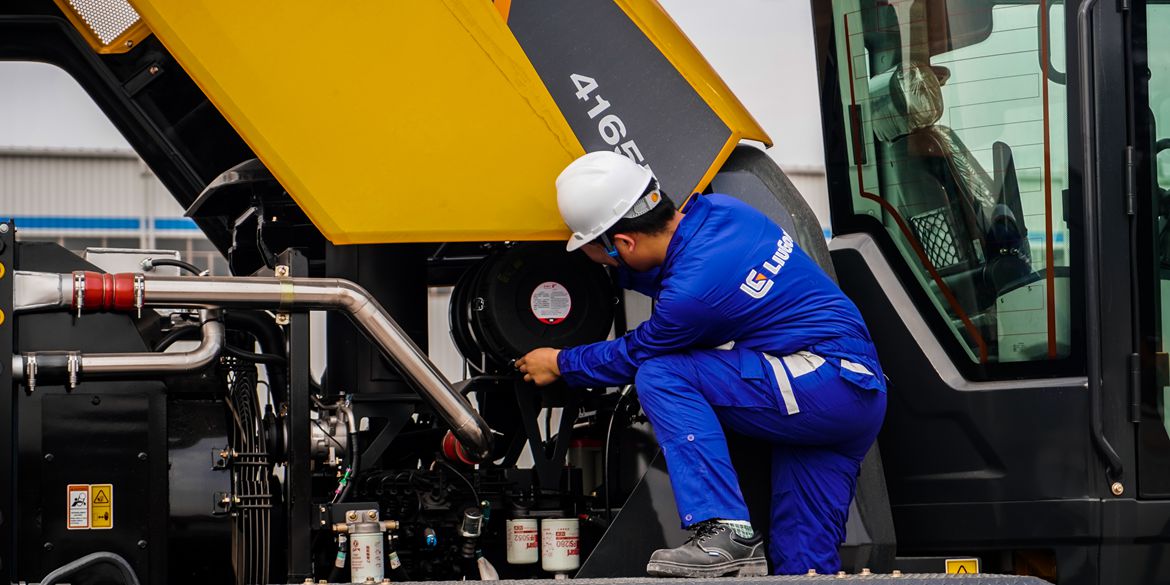

Model

Cummins 6BTAA5.9-C180

Cummins 6BTAA5.9-C180

Emission regulation

Tier 2 / Stage II

Tier 2 / Stage II

Rated power

132 kW (177 hp / 180 ps) @ 2,200 rpm

132 kW (177 hp / 180 ps) @ 2,200 rpm

Type

Power shift

Power shift

Speeds

6f / 3r

6f / 3r

Maximum travel speed, forward

40 km/h

25 mph

Maximum travel speed, reverse

26.5 km/h

16 mph

Turning radius

6900 mm

22'8"

Articulation angle

±27°

±27°

Maximum overall height

3380 mm

11'1"

Width over tires

2600 mm

8'6"

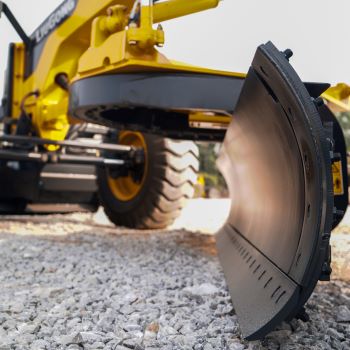

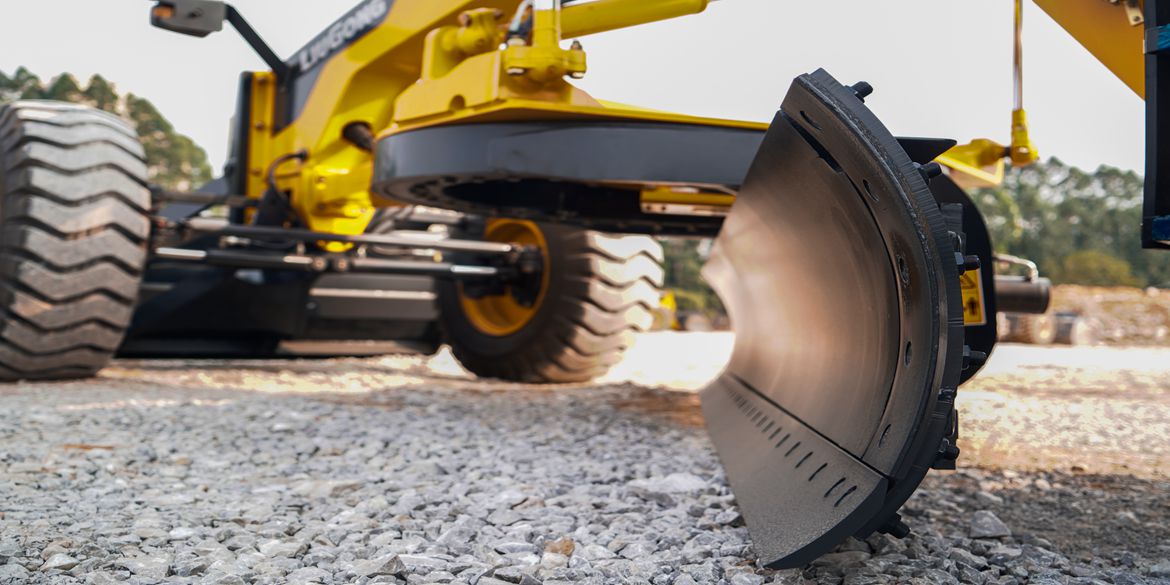

Blade width

3660 mm

12'

Overall length

8850 mm

29'
