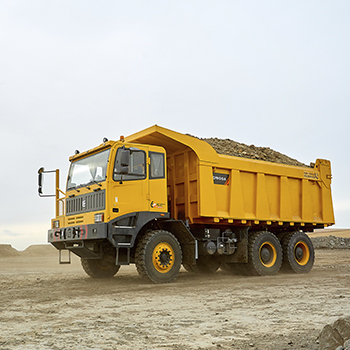

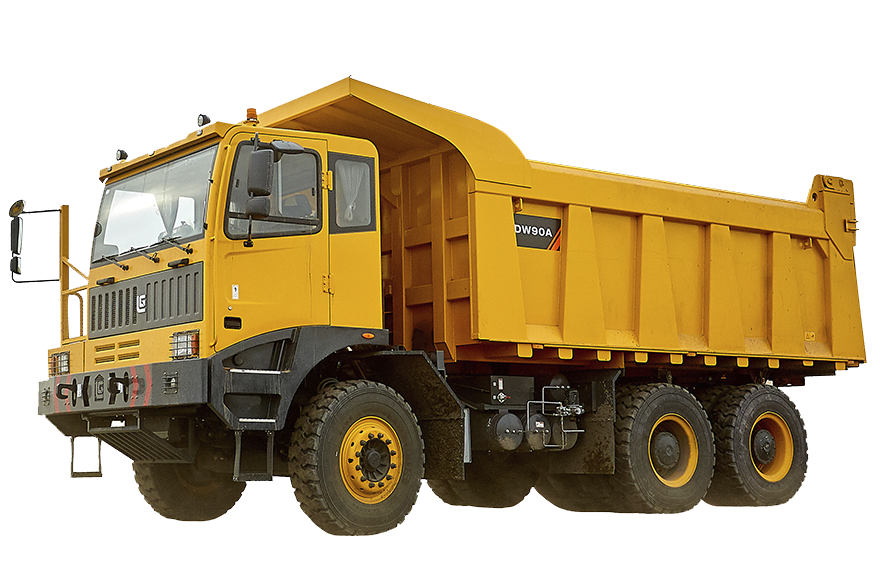

Mining TrucksDW90A

Product Features

Specifications

Cummins-engine

DW90A－Cummins Engine

Operating weight

31000 kg

Rated load

59000 kg

Gross Machine Weight

90000 kg

Struck Capacity

30 m³

Heaped capacity (SAE 2:1)

36 m³

Engine Model

Cummins QSM11

Emission regulation

Tier 3 / Stage III

Rated power

306 kW (416 hp) @ 1900 rpm

Transmission Model

Fast 10JSD220

Type

Manual

Maximum travel speed

40 km/h

Dimension

9070x3450x4370 mm

Tire

14.00R25

Connect Dealer

Weichai-Engine

DW90A－Weichai Engine

Operating weight

31000 kg

Rated load

55000 kg

Gross Machine Weight

86000 kg

Struck Capacity

30 m³

Heaped capacity (SAE 2:1)

36 m³

Engine Model

Weichai WP12G460

Emission regulation

Tier 3 / Stage III

Rated power

338 kW (460 hp) @ 2100 rpm

Transmission Model

Fast FC6A210

Type

Automatic

Maximum travel speed

45 km/h

Dimension

9070x3450x4370 mm

Tire

14.00R25

Connect Dealer
