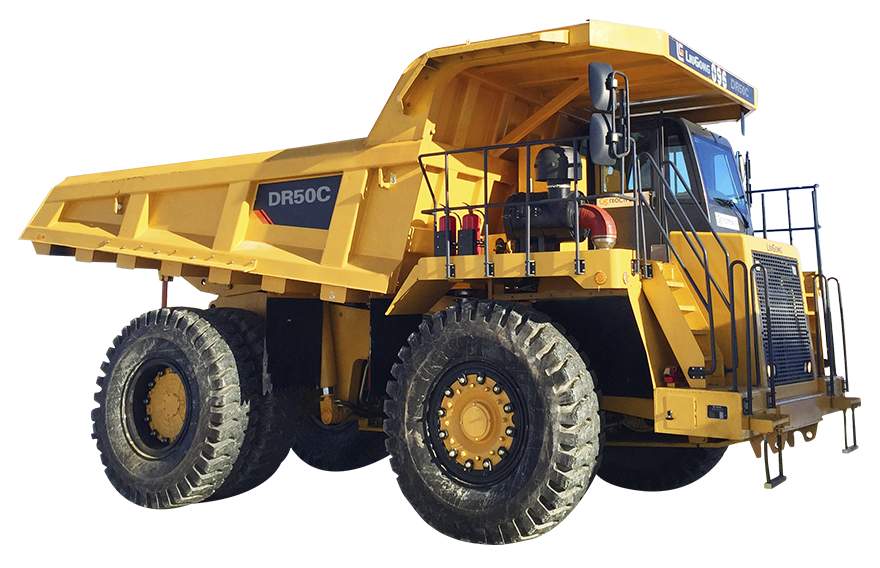

DR50C
Mining TrucksDR50C
1
Operating weight
36800 kg
81130 lb
Rated load
45000 kg
99208 lb
Gross Machine Weight
81800 kg
180338 lb
Struck Capacity
21.8 m³
29 yd³
Heaped capacity (SAE 2:1)
29.8 m³
39 yd³
Engine Model
Cummins QSX15
Emission regulation
Tier 3 / Stage III
Rated power
388 kW (528 hp) @ 2100 rpm
Transmission Model
Allison
Type
Automatic
Maximum travel speed
56 km/h
35 mph
Dimension
8930x5270x4310 mm
29'4"x17'3"x14'2"
Tire
15.00/3.0-35
