Operating weight

31800-32900 kg

70107-72532 lb

Engine power

169 kW (227 hp/230 ps) @ 2050 rpm

169 kW (227 hp/230 ps) @ 2050 rpm

Bucket capacity

1.4 / 1.6 m³

1.831/2.093 yd³

Maximum travel speed (High)

5.5 km/h

3 mph

Maximum travel speed (Low)

3.0 km/h

2 mph

Maximum swing speed

10.3 rpm

10.3 rpm

Arm breakout force

137 kN

30799 lbf

Arm breakout force Power boost

149 kN

33497 lbf

Bucket breakout force

187 kN

42039 lbf

Bucket breakout force Power boost

203 kN

45636 lbf

Shipping length

10650 mm

34'11"

Shipping width

3190 mm

10'6"

Shipping height

3525 mm

11'7"

Track shoe width (std)

600 mm

1'12"

Boom

6200 mm

20'4"

Arm

3050 mm

10'

Digging reach

10653 mm

34'11"

Digging reach on ground

10453 mm

34'4"

Digging depth

7300 mm

23'11"

Vertical wall digging depth

6216 mm

20'5"

Cutting height

10300 mm

33'10"

Dumping height

7265 mm

23'10"

Minimum front swing radius

4040 mm

13'3"

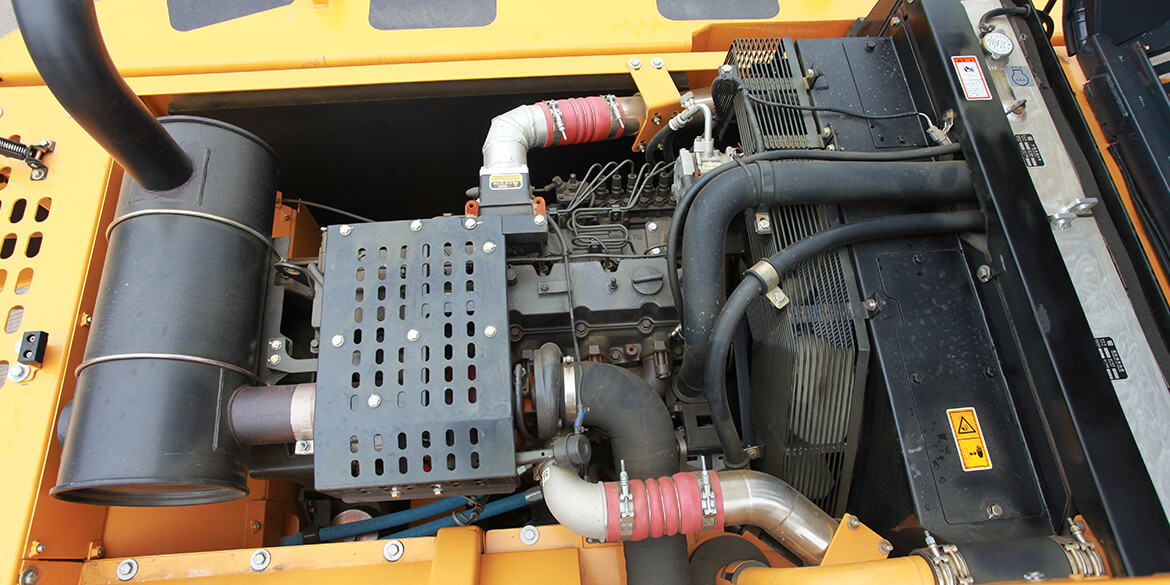

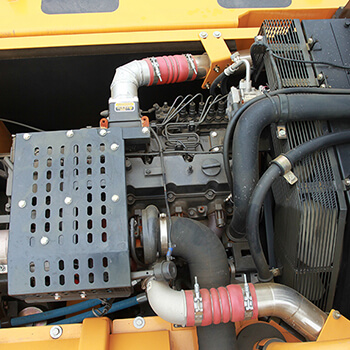

Model

Cummins QSB7

Cummins QSB7

Emission

EPA Tier 3 / EU Stage IIIA

EPA Tier 3 / EU Stage IIIA

System maximum flow

2×266 L/min (2x70 gal/min)

2×266 L/min (2x70 gal/min)

System pressure

34.3 MPa

4975 psi
