Operating weight

46500-48300 kg

102515-106483 lb

Engine power

280 kW (375 hp) @ 2000 rpm

280 kW (375 hp) @ 2000 rpm

Bucket capacity

2.6 / 2.8 / 3.2 m³

3.401/3.662/4.185 yd³

Maximum travel speed (High)

5.3 km/h

3 mph

Maximum travel speed (Low)

3.1 km/h

2 mph

Maximum swing speed

8.5 rpm

8.5 rpm

Arm breakout force

255/240/209 kN

57326/53954/46985 lbf

Arm breakout force Power boost

270/263/225 kN

60698/59125/50582 lbf

Bucket breakout force

265/263/268 kN

59574/59125/60249 lbf

Bucket breakout force Power boost

280/287/288 kN

62947/64520/64745 lbf

Shipping length

11515/12030/12062 mm

37'9"/39'6"/39'7"

Shipping width

3340 mm

10'11"

Shipping height

3810 mm

12'6"

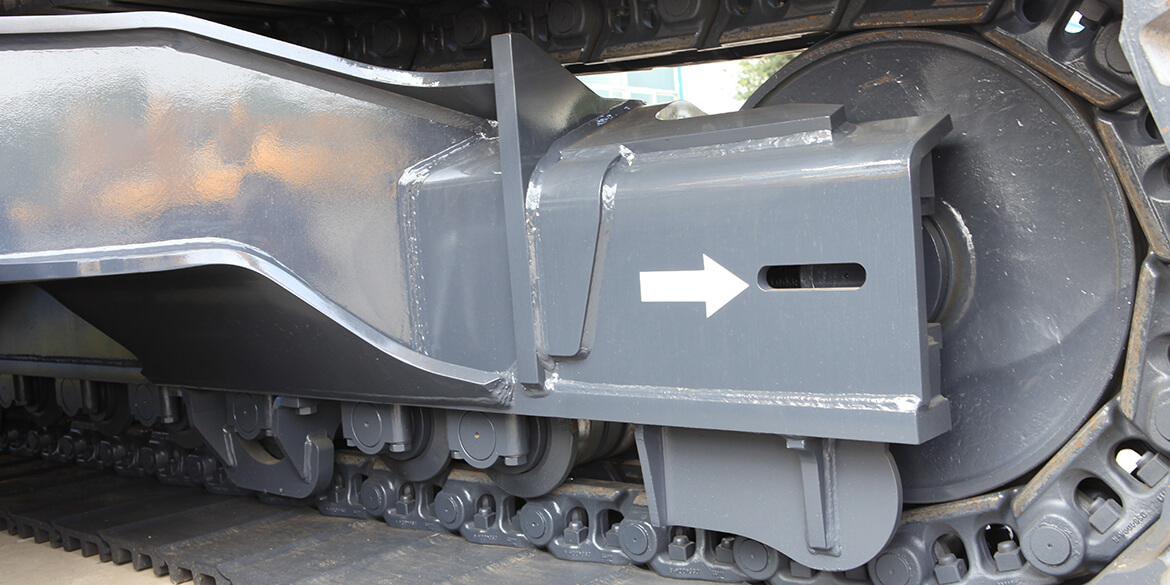

Track shoe width (std)

600 mm

1'12"

Boom

6500/7060/7060 mm

21'4"/23'2"/23'2"

Arm

2550/2900/3380 mm

8'4"/9'6"/11'1"

Digging reach

10625/11585/12020 mm

34'10"/38'/39'5"

Digging reach on ground

10388/11368/11810 mm

34'1"/37'4"/38'9"

Digging depth

6521/7380/7860 mm

21'5"/24'3"/25'9"

Vertical wall digging depth

5204/6011/6435 mm

17'1"/19'9"/21'1"

Cutting height

9977/10618/10785 mm

32'9"/34'10"/35'5"

Dumping height

7038/7578/7520 mm

23'1"/24'10"/24'8"

Minimum front swing radius

4645/5052/5015 mm

15'3"/16'7"/16'5"

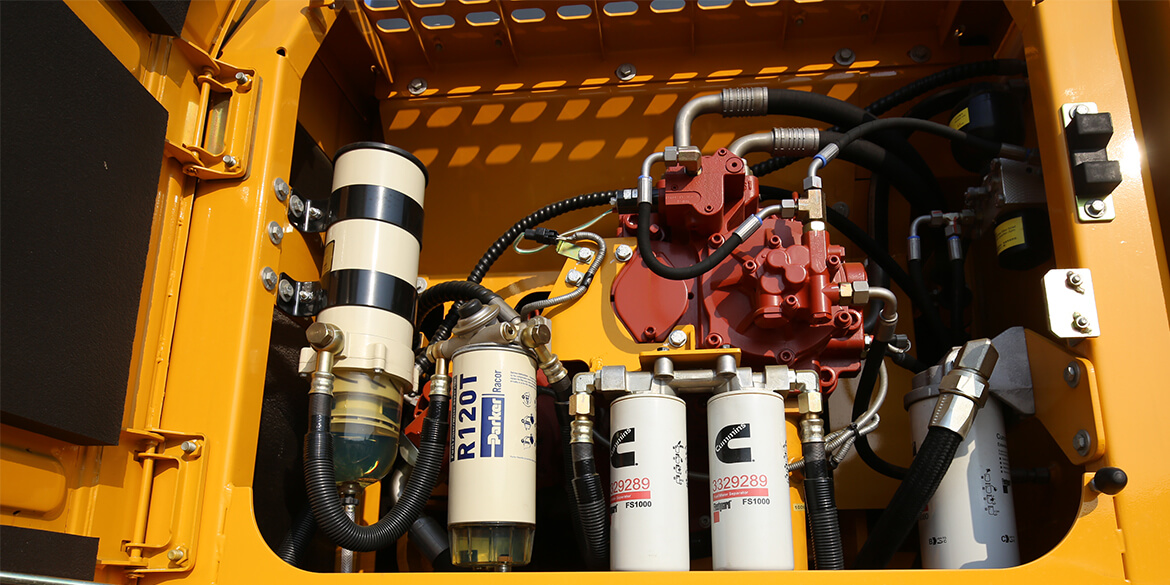

Model

Cummins QSM11

Cummins QSM11

Emission

EPA Tier 3 / EU Stage IIIA

EPA Tier 3 / EU Stage IIIA

System maximum flow

2×380 L/min (2x100 gal/min)

2×380 L/min (2x100 gal/min)

System pressure

34.3 MPa

4975 psi
