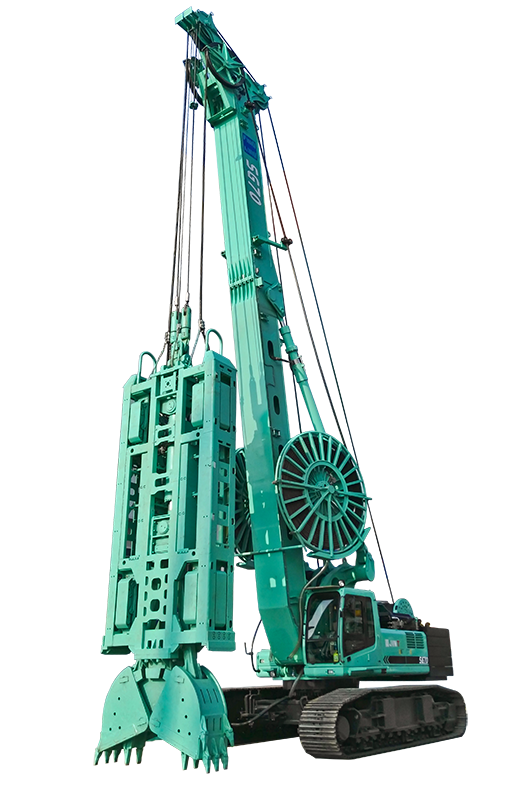

SG70
Diaphragm Wall GrabSG70
Wall width
0.8-1.5 m
3-5 ft
Wall depth
80 m
262 ft
Max extraction force
700 kN
157366 lbf
Single line pull
2×350 kN
450×78683 lbf
Hydraulic system pressure
35 MPa
5076 psi
Hydraulic system flow
2×380 L/min
1×100 gal/min
Frame weight
23-35 t
50706-77162 lb
Machine weight(without shovel)
98 t
216053 lb
Working height
18300 mm
60'
Max lifting height
5500 mm
18'1"
Overall crawler length
6020 mm
19'9"
Distance between center frame and swing center
4620-5620 mm
15'2"-18'5"
Swing radius of rearend
4700 mm
15'5"
Engine
QSM11-Tier3
Max speed
1900 rpm
Rated output
300 kW
402 hp
Undercarriage Model
JT90
Outer distance of crawler
3450-4600 mm
11'4"-15'1"
Track shoe width
800 mm
2'7"
Traction force
Travel speed
1.5 km/h
1 mph
