Operating weight

7500 kg

16535 lb

Engine power

46.3 kW (62 hp) @ 2200 rpm

46.3 kW (62 hp) @ 2200 rpm

Bucket capacity

0.1-0.5 m³

0.131-0.654 yd³

Maximum travel speed (High)

5.3 km/h

3 mph

Maximum travel speed (Low)

3.2 km/h

2 mph

Maximum swing speed

12 rpm

12 rpm

Arm breakout force

36 kN

8093 lbf

Bucket breakout force

56 kN

12589 lbf

Shipping length

6100 mm

20'

Shipping width

2260 mm

7'5"

Shipping height

2700 mm

8'10"

Track shoe width (std)

450 mm

1'6"

Boom

3710 mm

12'2"

Arm

1650 mm

5'5"

Digging reach

6270 mm

20'7"

Digging reach on ground

6125 mm

20'1"

Digging depth

4030 mm

13'3"

Vertical wall digging depth

3240 mm

10'8"

Cutting height

7115 mm

23'4"

Dumping height

5080 mm

16'8"

Minimum front swing radius

1785 mm

5'10"

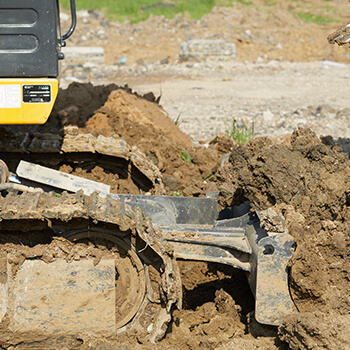

Dozer-up

425 mm

1'5"

Dozer-down

440 mm

1'5"

Model

Yanmar 4TNV98-ZCSLY

Yanmar 4TNV98-ZCSLY

Emission

EU Stage IIIA / Tier 3

EU Stage IIIA / Tier 3

System maximum flow

158.4 L/min ( 42 gal/min)

158.4 L/min ( 42 gal/min)

System pressure

29.4 MPa

4264 psi
